PH-PM05 / COMING SOON

One pack.
Many systems.

A compact intelligent energy platform for cordless tools, USB-C devices, field equipment and portable power applications—coming soon from DARC.

COMING SOONPH-PM05 SMART BATTERY PLATFORM
Discover PH-PM05 →Watch the concept film ↓
5 cellsLi-ion system
80 WUSB-C PD
30 AContinuous output

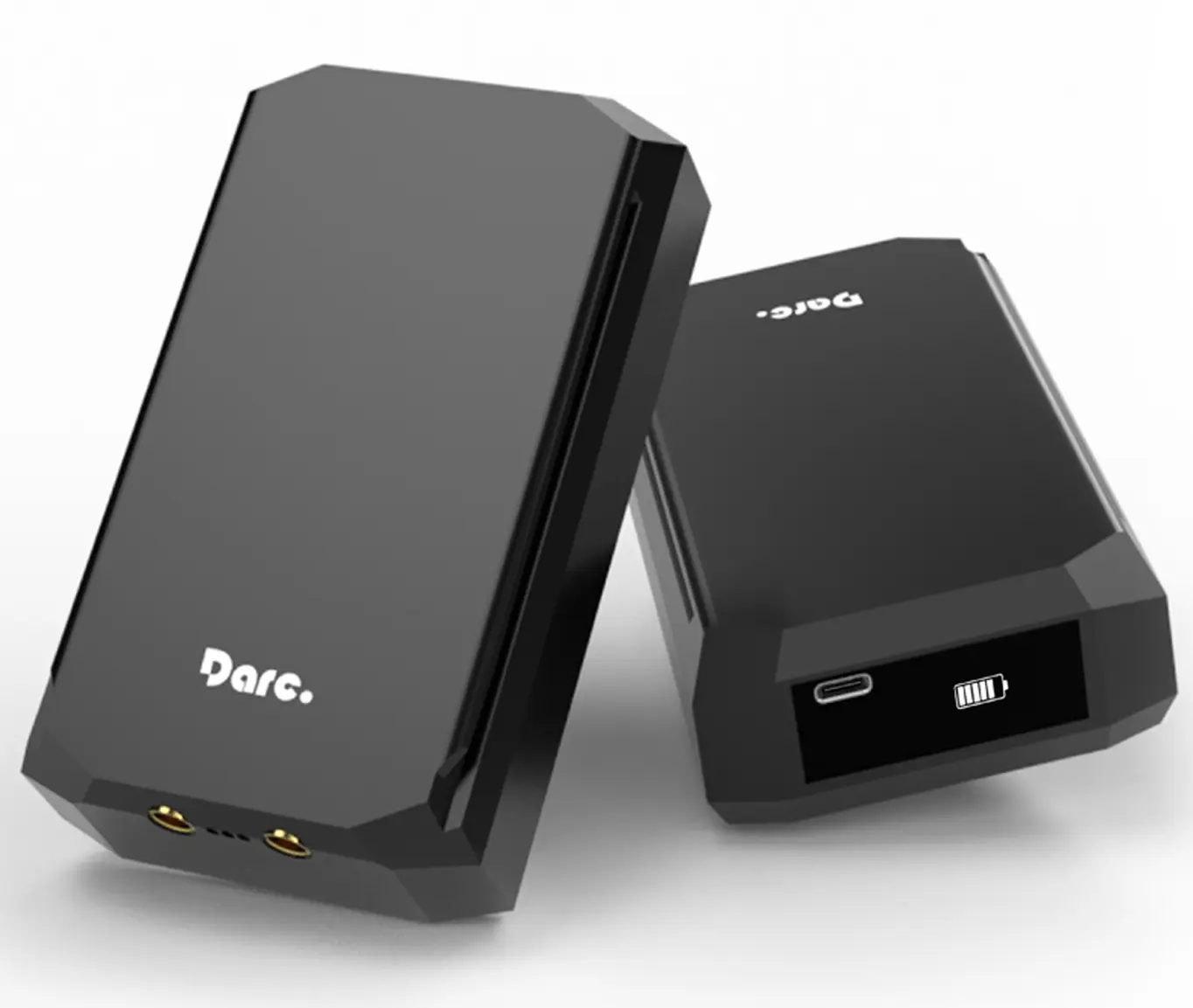

Two DARC PH-PM05 smart battery units showing USB-C, battery indicator and power contactsPH-PM05 / PRODUCT VIEW
BMS ACTIVE
USB-C PD 80W

DARC / PH-PM05 FILM

Power that follows
the work.

00:54 / PRODUCT FILM

See one intelligent pack connect to power tools, cooling equipment, workshop machinery and portable energy systems.

PH-PM05 SMART ENERGY1920 × 1080 / FULL HD / STEREO

01 / SYSTEM

Intelligence inside.
Flexibility outside.

PH-PM05 combines a protected 5-cell energy core, accurate battery estimation and bidirectional USB-C power in one portable platform.

015 cells Li-ion energy core

Five series-connected cells deliver up to 21 V and 45.62 Wh, with passive balancing for consistent cell performance.

12.5–21 V / 2.5 Ah
02Advanced BMS

Real-time voltage, current and temperature monitoring with overvoltage, undervoltage, overcurrent and short-circuit protection.

MCU + BMS / NTC monitored
03Accurate state estimation

Coulomb counting and Kalman filtering work together to provide reliable State-of-Charge information.

Live SoC / cell balancing
04Bidirectional USB-C PD

Fast charging and device power through one USB-C interface, with intelligent profiles up to 80 W.

PD3.0 / QC3.0+ / up to 20 V

02 / APPLICATIONS

One energy core.
Multiple jobs.

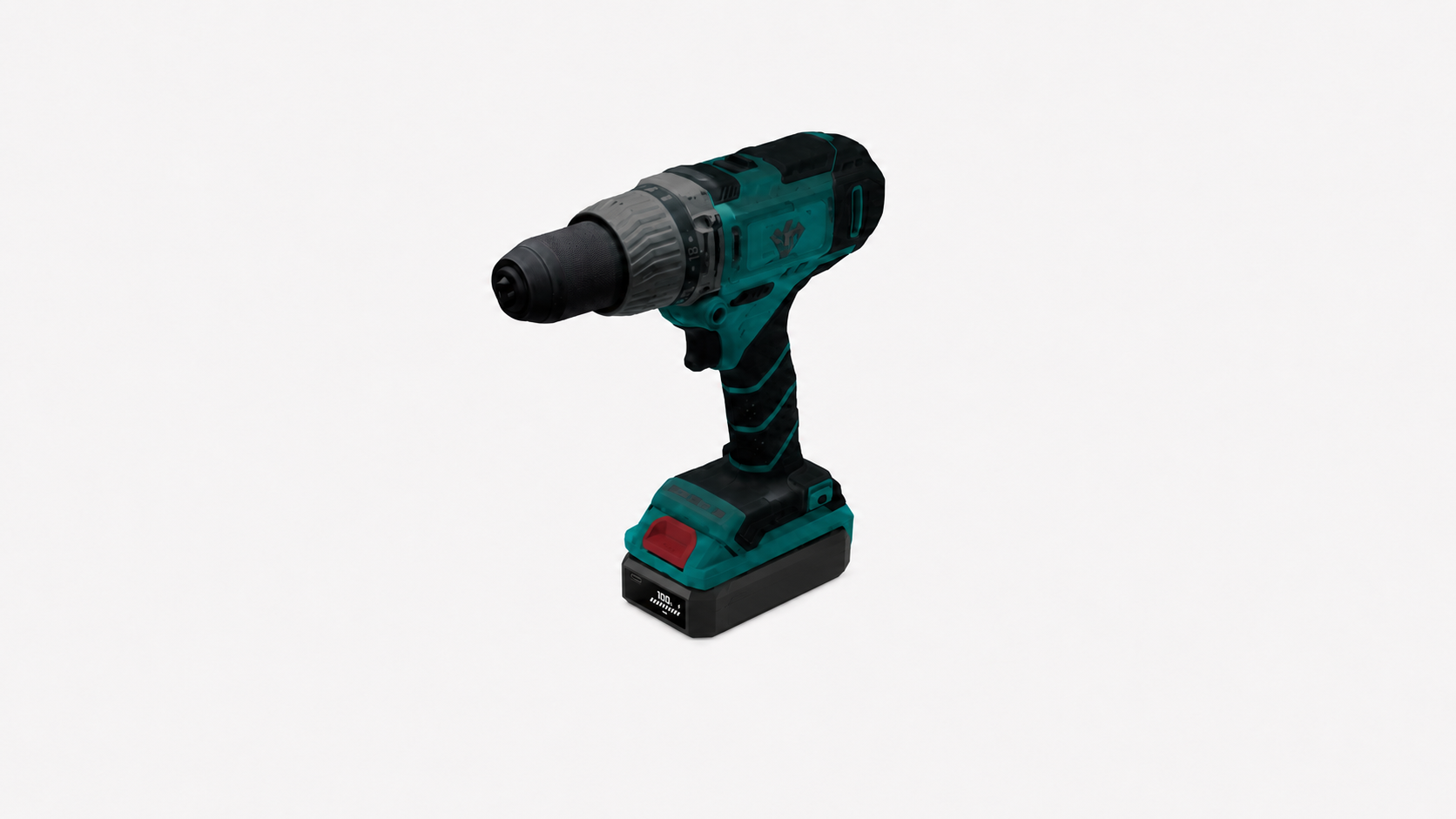

Cordless drill with a docked slim PH-PM05 battery and its 100% OLED on the short front end face
01 / CORDLESS TOOLS

Power-tool compatibility

PH-PM05 connects to compatible cordless tools through an interchangeable adapter, allowing one removable smart battery pack to support different tool interfaces.

PH-PM05 / ADAPTER / CORDLESS TOOL

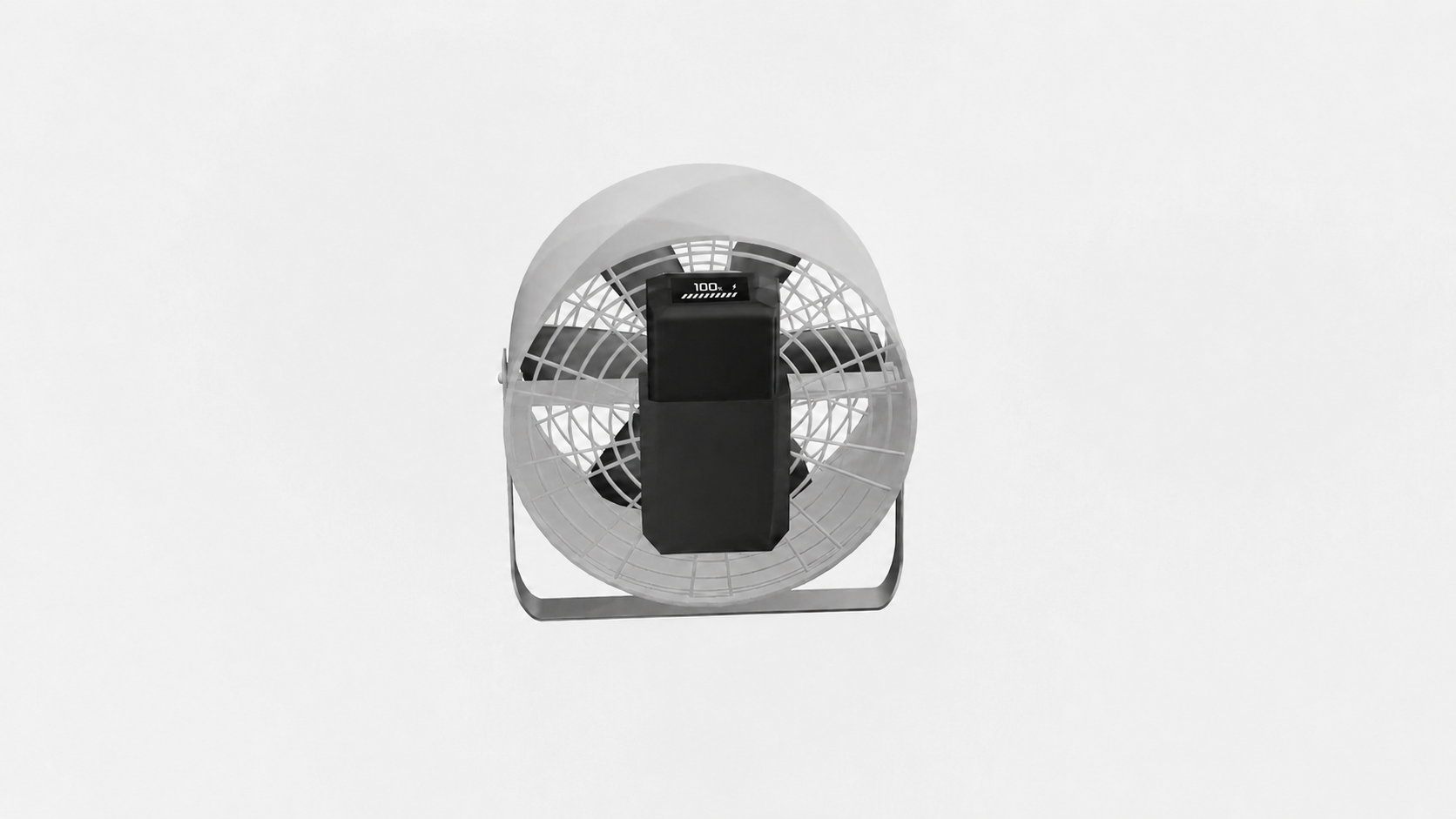

Front view from the PH-PM05 promotional film showing the smart battery docked centrally behind the fan grille with its 100% OLED on the top-facing surface
02 / COOLING

Rear-mounted portable cooling

A single PH-PM05 pack slides into the fan's rear docking interface to supply cordless power without obstructing the front airflow. The removable format supports fast pack exchange, separate charging and reuse across other compatible applications.

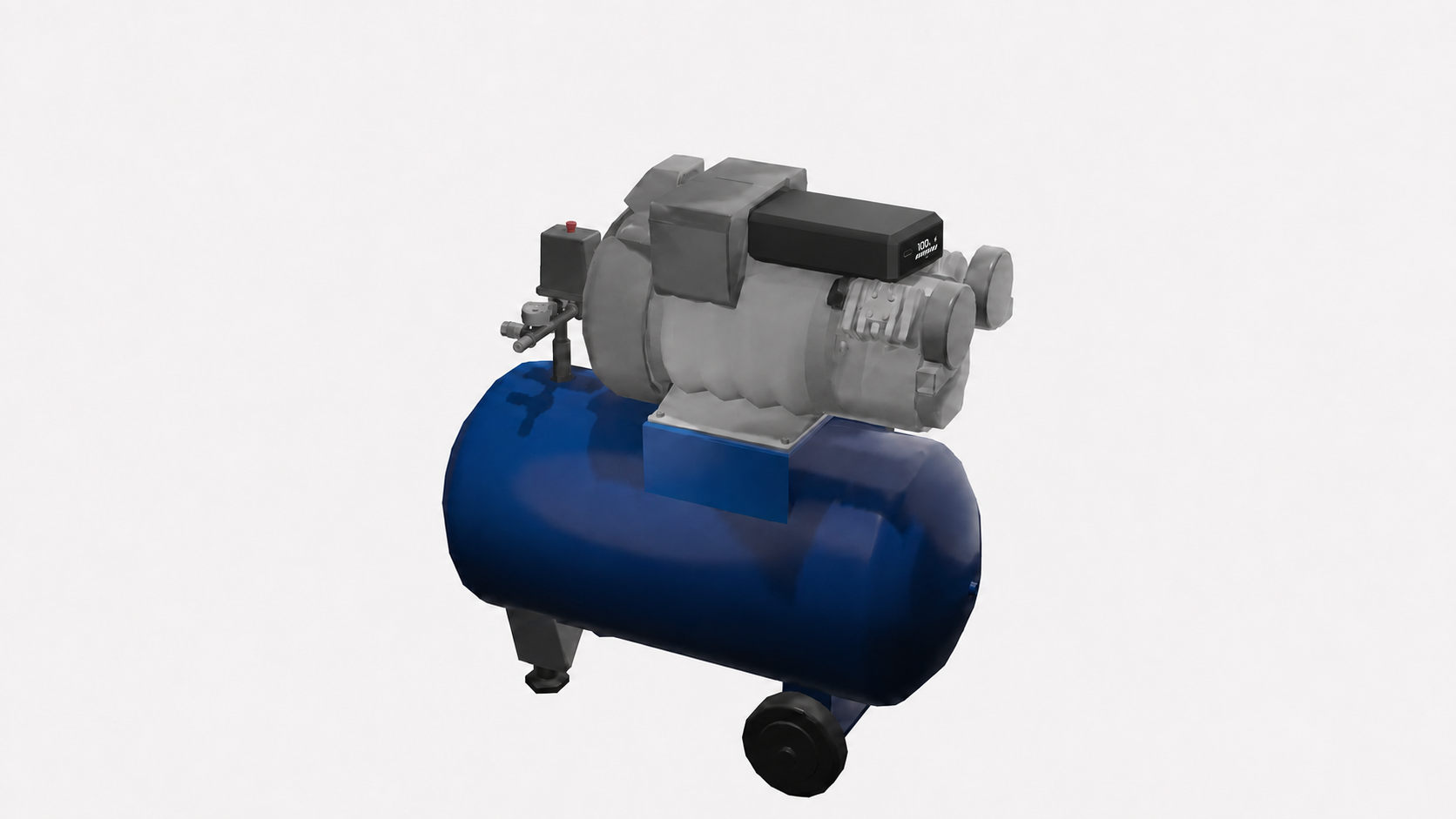

Air compressor with a fully seated slim PH-PM05 battery and its 100% OLED on the short front end face
03 / WORKSHOP

Field equipment

PH-PM05 slides fully into the equipment's dedicated socket, where the docking rails retain the pack and connect power to the machine. The removable pack replaces a fixed internal battery and can be exchanged between jobs to extend operating time.

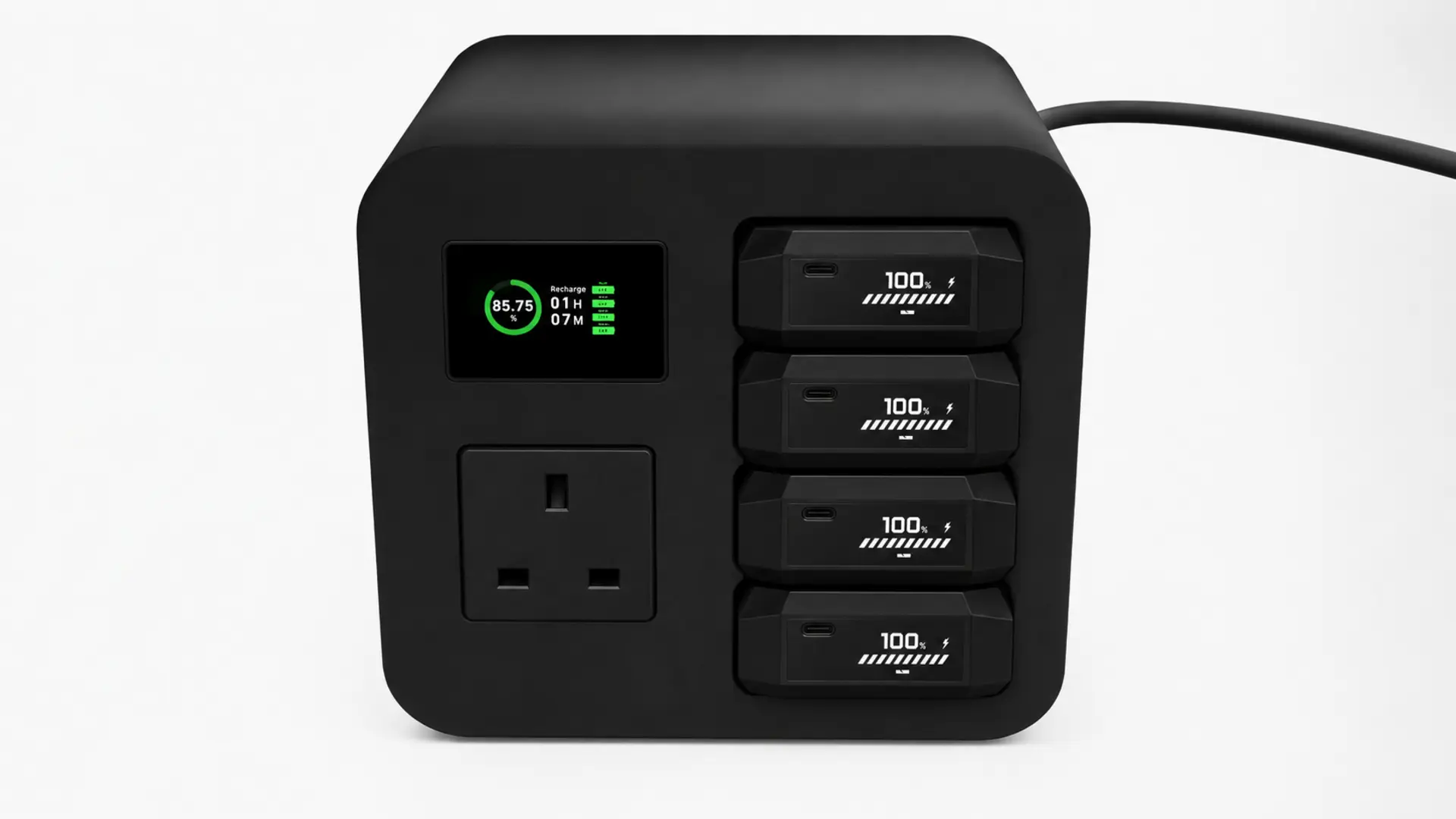

DARC power station with four display-equipped PH-PM05 smart batteries, system status screen, UK Type G outlet and power cable
04 / BACKUP POWER

Multi-pack power station

Four swappable PH-PM05 packs combine inside one portable energy hub. Each pack docks independently and reports its status to the central display, while the integrated UK Type G outlet supplies connected tools, electronics and essential equipment. Individual packs can be exchanged to extend runtime without replacing the complete system.

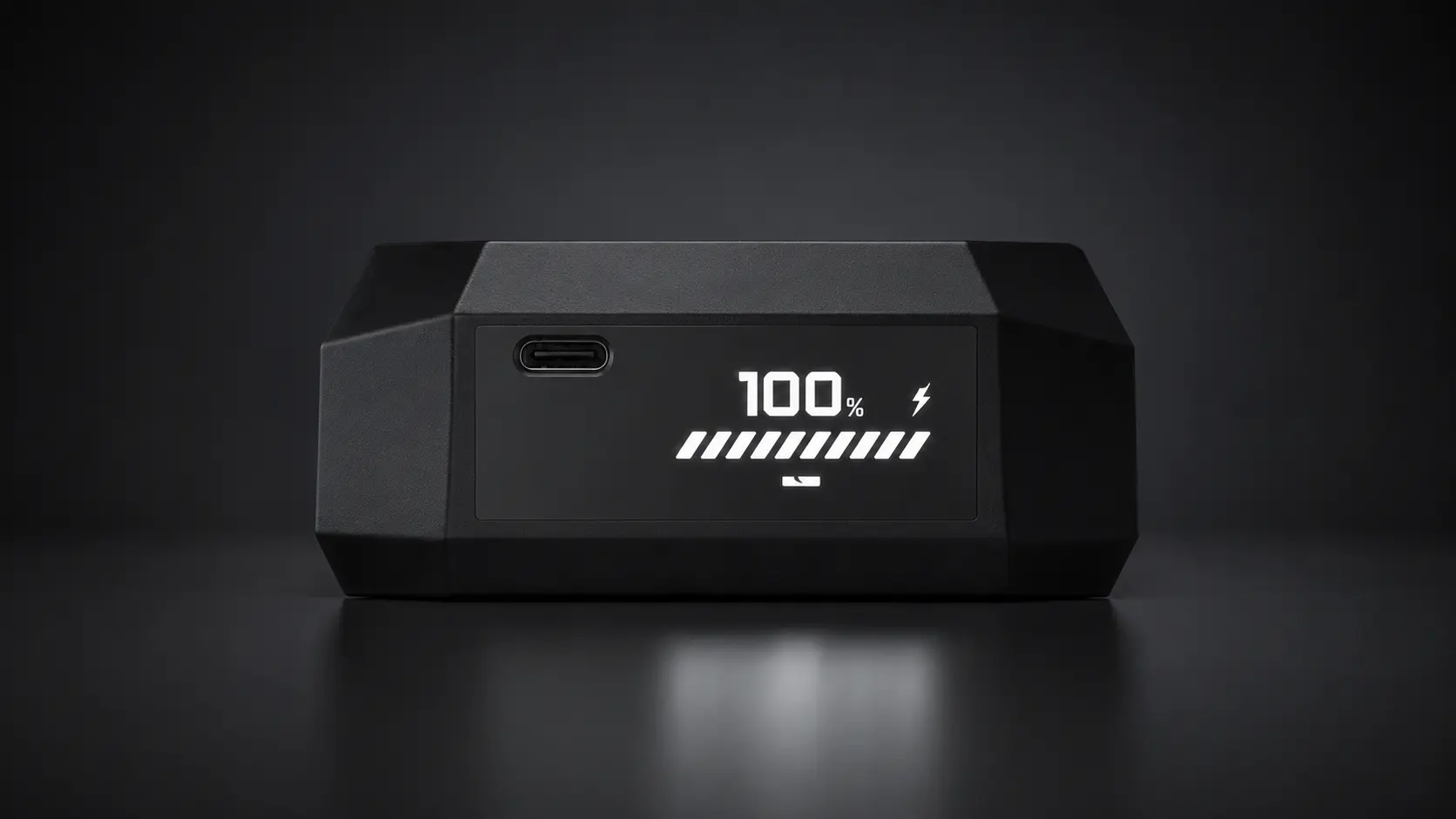

PH-PM05 OLED display interface
05 / USER INTERFACE

At-a-glance status

The integrated OLED keeps battery capacity and charging information visible wherever the pack is used.

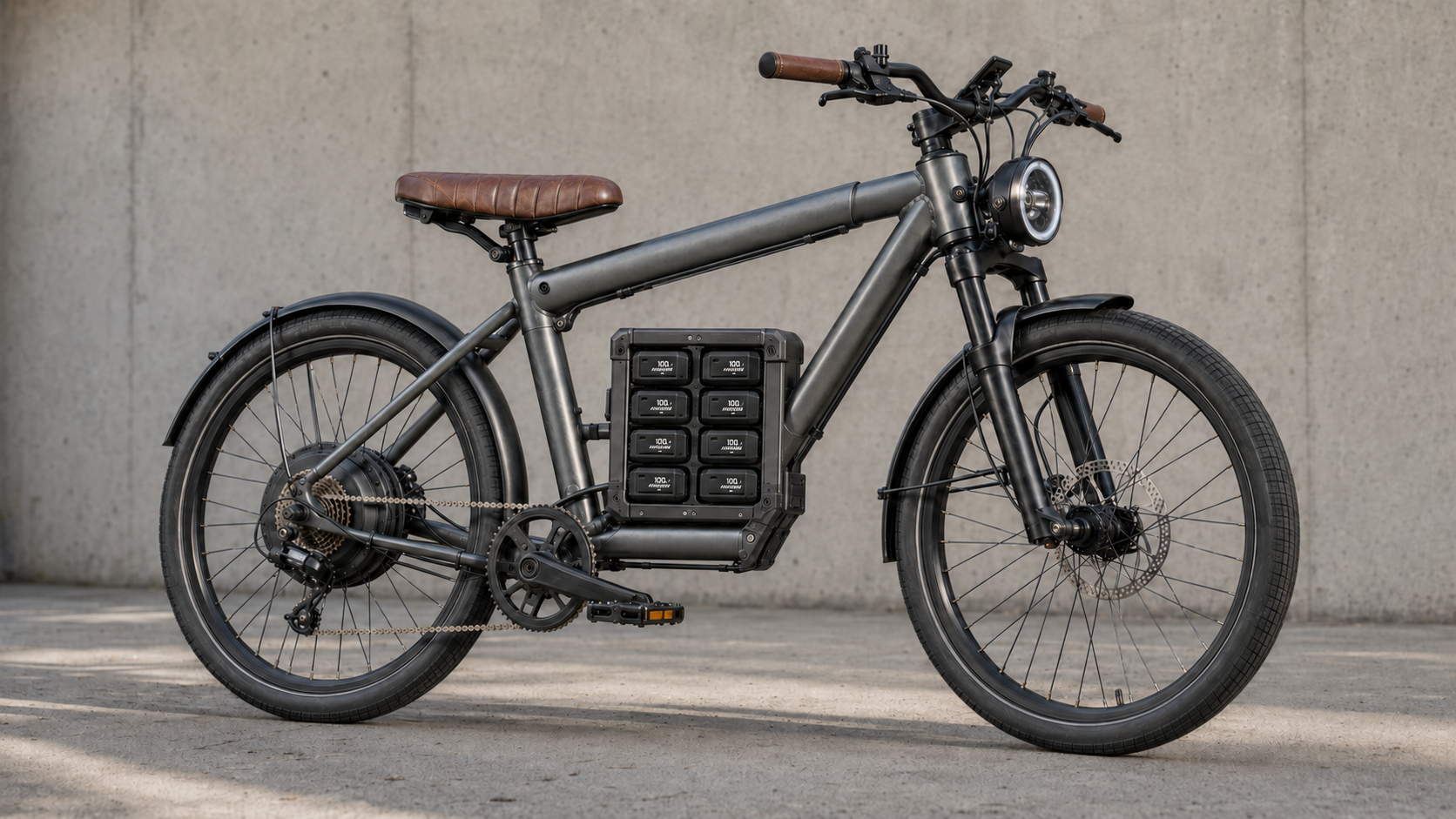

Photorealistic neo-retro electric bicycle with a rear hub motor and eight PH-PM05 packs using power-station-style 100% display front panels
06 / E-MOBILITY

Scalable power system

The modular architecture scales from four to eight swappable PH-PM05 packs. Each pack docks independently into a shared power system, allowing capacity and operating range to increase without changing the core platform. Pack-level SoC and SoP communication supports status monitoring, coordinated power delivery and individual pack replacement.

4-PACK / 8-PACK / SWAPPABLE DOCKS / UP TO 370 WH

03 / INTERFACE

Know the power.
Trust the system.

The 0.96-inch OLED presents clear battery capacity and charging information using the display design shown in the product film.

80%
ACTIVE DISPLAY MODE

Battery Status

The primary screen presents remaining battery capacity through a large percentage and segmented charge bar.

128 × 64 PIXELS

04 / SPECIFICATIONS

Compact power.
Defined clearly.

Key engineering targets from the PH-PM05 smart battery system explanation.

POWER SYSTEM
Battery type
5 cells Li-ion
Voltage range
12.5–21 V
Max discharge
30 A continuous
Capacity
2.5 Ah / 45.62 Wh
USB-C PD
Power rating
80 W max
Voltage
Up to 20 V
Current
Up to 4 A
Protocols
PD3.0 / QC3.0+
PROTECTION
Overvoltage
4.25 V/cell
Undervoltage
2.5 V/cell
Short circuit
100 A trip
Temperature
NTC monitored
INTERFACE
Display
0.96-inch OLED
Resolution
128 × 64 pixels

Specifications represent the PH-PM05 concept document and may evolve during detailed engineering and validation.

05 / CAPABILITIES

Ready beyond
the workshop.

Charging and output options extend the same pack into off-grid, mobile and emergency use cases.

01Universal tool adaptersInterchangeable+

Standardized adapter interfaces let one PH-PM05 energy pack connect across compatible tool brands.

  • Makita
  • DeWalt
  • Bosch
  • Milwaukee
02USB-C and solar chargingBidirectional+

USB-C PD supports fast charging and device output, while an optional solar interface enables off-grid recharging.

  • 80 W USB-C PD
  • Bidirectional flow
  • Optional solar input
03Accessory power outputHigh current+

Dedicated terminals extend PH-PM05 beyond tools into portable accessories and compact equipment.

  • Cooling equipment
  • Field equipment
  • Portable power systems

DARC / PH-PM05 / COMING SOON

The future of portable power.
Coming soon.

One adaptable smart battery platform for tools, devices and field equipment.

Watch the concept film →
